The GC-100 Network Adapter connects a network utilizing TCP/IP to infrared (IR), serial, relay and sensor inputs that can interrupt or be polled by another network device. An embedded web server allows easy configuration from any browser. Utilizing an exclusive modular mix-and-match hardware design the Network Adapter can be easily modified for each individual installation by sliding an additional expansion module(s) (not available yet) into the GC-100 enclosure.

GC-100-06 (6" unit), GC-100-12 (12" unit), and GC-100-18 (18" unit)
Features Connects IR, Sony Control-S, RS232 serial, sensors, and relay contact closures to a network Available in 3 sizes and a rack mount version for unsurpassed flexibility 10 Base-T network port Very small footprint Only one power supply required for each enclosure Embedded web server for easy configuration using a browser       Benefits Cost effective price saves money Modular design saves time and money on installation Use one device rather than several from different vendors to save time and money on service Ability to provide open network-based system for more satisfied customers Lower cost and high reliability for more satisfied customers Less inventory required due to modular mix and match design One power supply avoids expense, clutter, and improved reliability       GC-100-06 Power input Network connection Serial port Three independent IR outputs or sensor inputs One additional expansion module supported Dimensions: 6.0" L x 3.0" D x 1.3" H       GC-100-12 Power input Network connection Two serial ports Three relays Six independent IR outputs or sensor inputs Two additional expansion modules supported Dimensions: 12.0" L x 3.0" D x 1.3" H       GC-100-18 Same configuration as GC-100-12 with five additional expansion modules supported Dimensions: 17.5" L x 3.0" D x 1.3" H       GC-100-18R Same configuration as GC-100-18 with rack mount kit installed       iTach WiFi to IR: WF2IR Power input - 12V DC@500mA (wall power adapter included) Network connection - 802.11b (compatible to 802.11b/g) with 2.5" antenna Wi-Fi can be used from anywhere and does not require line-of-sight access or wiring Three independent user selectable IR outputs or sensor inputs - 3.5mm mono jack Third IR port supports IR blaster Includes three IR emitters and one IR blaster       iTach WiFi to Serial: WF2SL 5 to 16V DC@300mA (wall power adapter included) USB power cable draws power from USB port (included) One serial port Network connection - 802.11b (compatible to 802.11b/g) with 2.5" antenna

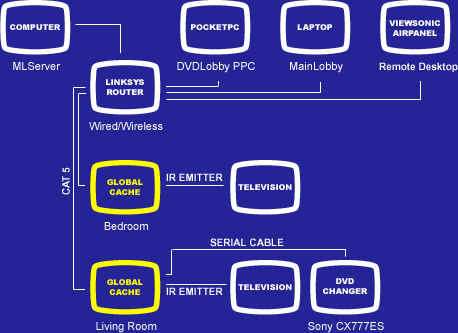

Sample System Configuration
