Simplifi 7.1 Amplifier

  This product is an excellent means to distribute high quality multizone audio:
Class A/B Hybrid Design provides power and audio fidelity

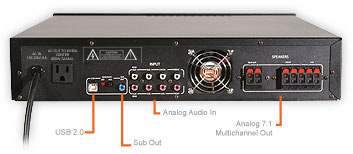

Simple Rear Panel Connections make setup easy
Power Sensing Technology turns amplifier on/off with PC
Volume controlled through PC
Advanced Speaker Protection
Connects directly to MusicLobby Server's sound card outputs

The ideal audio solution for your MainLobby Media system-without needing another remote control. Simplifi’s Model 7075 amplifier fills larger rooms with powerful, 7.1 surround sound. Like all of Simplifi’s amplifiers, the Model 7075 is easy to install and use. This amplifier looks and sounds great in any room!


Recommended Usage:
For MusicLobby 3 systems with a high quality sound sub-system, such as Intel, Creative Labs, M-Audio, Turtle Beach and others. Stack the Simplifi amplifier on top of your MainLobby Server for a great looking, inexpensive and room filling whole house audio system.

The 7.1 amplifier can be used as a theater room amp (used with DVDLobby 3 as example) or as a whole house audio amplifier (when used with MusicLobby3).

For use as a multizone amp, simply define your output zones in J River Media Center. Then, connect the defined sound card outputs to a pair of the 7.1 amps input channels. Supports up to 3 stereo audio zones, plus one mono audio zone (for use outdoors or for announcements, as example).

  Unit Includes
Simplifi 7.1 Amplifier
1/8" Mini to RCA cables (4 Sets)
RCA to RCA cables (4 Sets)
USB Cable
User's Guide
Vertical Mount Kit (optional)
Rack Mount Kit (optional - not available yet)

  Specifications
50 W/ch RMS, 8 ohm (1 kHz sine wave, all channels driven)
75 W/ch RMS, 4 ohm (1 kHz sine wave, all channels driven)
75 W/ch Peak, 8 ohm (useful power)
100 W/ch Peak, 4 ohm (useful power)
Frequency Response 20Hz-20kHz (+/-0.2db over the entire frequency range)
Total Harmonic Distortion <.03%, 50W RMS, 4/8 ohms, 20Hz-20kHz
Line-level Audio Inputs 1V RMS (2.83V P-P) yields peak power output
50k Impedance
8 RCA inputs
Subwoofer output: Pass through (non-buffered)
AC Power 110-125 VAC at 5A (US)
220-240 VAC at 2.5A (EU, UK, AUS)
Dimensions 17¼" (width) x 4¼" (height) x 16¼" (depth)
44cm (width) x 11cm (height) x 41cm (depth)
Weight 33 lbs (15kg)



Simplifi 7.1 Analog Amplifier (Black)
Price: US $349.99

(will price at $369.99 to account for additional overweight shipping charge. Base shipping cost will also be added with your shipping choice)
