Cinemar AIO-Touch Series In-Wall Touch Panels

SPECS

DRIVERS

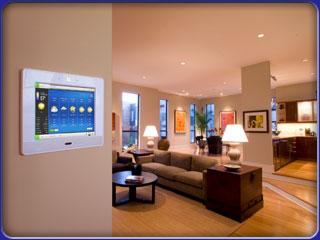

Cinemar's new fanless All-In-One In-Wall Touch Panel PC's are based on the Intel Atom Processor. The AIO-Touch series panels are available in 8.4", 10.2" [WS], 12.1" and 15" screen sizes to fit any room.

AIO-Touch In-Wall Touch Panel

	Features
	Available in the following screen sizes: - 8.4" [800 x 600] - 10.2" [1024 x 600] - 12.1" [1024 x 768] - 15" [1024 x 768]
	Fanless On-Board 1.6GHz Intel® Atom™ N270 CPU Ensures Low Power Usage
	Windows XP Embedded Operating System
	4 GB Compact Flash Solid State Hard Drive
	1GB DDR2 RAM
	* 300K Pixel CMOS Camera with Digital Microphone
	Two 1.5W Speakers or 2W Speakers
	Resistive Touchscreen
	Wireless 802.11 b/g
	* Built-in Bluetooth Technology rids systems of cables and allows wireless connection to peripheral devices like head phones, keyboard and mouse
	Energy Efficient: - 8.4" uses 25w Max - 10.2" [WS] uses 28w Max - 12.1" uses 32w Max - 15" uses 49w Max
	Ambient light sensor detects ambient light for automated screen adjustments to optimize viewing and conserve energy: - Prevents Eye Strain - Conserves Energy - Extends Lamp Lifetime
	Changeable Faceplate
	Installs in-wall in Minutes
	VESA-Mountable for flexibility in mounting and Deployment
	Easily Accessible Power On/Off hidden behind Faceplate
	IP64 front panel compliant
	Equipped with a digital I/O RJ-12 to remotely control the device on and off
	Can be used with other non-Cinemar systems for home automation such as Life\|ware (Note: 8GB CF Required - Contact Cinemar for Upgrade Pricing)

	* Not included with 10.2" [WS]

Cinemar does not sell used hardware. All sales Final.
Specifications subject to change without notice.

AIO-Touch 8.4" Price: US $1499.99
	WHITE
	BLACK
	GRAY



NEW! AIO-Touch 10.2" [WS] Price: US $1649.99
	WHITE
	BLACK
	GRAY



AIO-Touch 12.1" Price: US $1649.99
	WHITE
	BLACK
	GRAY



AIO-Touch 15" Price: US $1699.99
	WHITE
	BLACK
	GRAY



AIO-Touch Options

Upgrade AIO-Touch to 2GB DDR2 RAM Price: US $59.99


Coming Soon UPS 140 Minute Backup Power Supply (Mounts Behind AIO-Touch onto VESA Mount)
