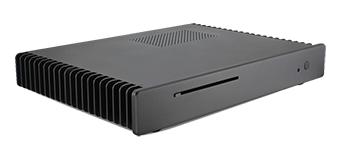

MLS-2000 Server

The MLS-2000 Server is a base system designed as a control system for lighting, irrigation, security, thermostat and av equipment control. Any optional plugins you purchase at the same time as the MLS-2000 Server are pre-installed for your convenience.



Control: The MLS-2000 Server comes equipped with 5 serial ports to control various home automation and Audio / Video equipment.

Reliability: Keeping your automation system up and running is critical. The MLS-2000 comes equipped with dual drives for redundancy. If one fails, the other serves as a backup.

	MLS-2000 Server Specifications
	Intel Core i3-530 Clarkdale 2.93GHz 4MB L3 Cache LGA 1156 73W Dual-Core Desktop Processor
	Windows 7 Home Premium (32 bit - Optimized for MLServer)
	2GB DDR2 SDRAM
	Blu-Ray Reader/DVD Burner Drive
	(2) Energy Efficient 320GB 7200 RPM HD [Raid 1]
	Standard rear panel connections include:     8 - USB 2.0 Connectors     5 - DB9 Serial Port Connectors     1 - HDMI connector     1 - DVI connector     1 - VGA connector     1 - PS2 Keyboard Connector     1 - PS2 Mouse Connector     1 - Gigabit Network Connector     1 - S/PDIF Digital Audio Output     1 - Line In / Line Out / Mic In audio connector
	Green Power Supply
	Black Metal/Aluminum 2U Rackmount Chassis
	Cinemar Software Preinstalled (see below)

	Included Software
	MainLobby 3 Client
	MainLobby 3 Server (5 client license)
	WeatherLobby 3
	WebLobby
	ClientSvc Plugin

Note: due to the volatility of the PC component market, and to keep up with ever changing PC technology, Cinemar reserves the right to exchange components for like kind replacement without notice. Cinemar server components are warranted by the original respective component hardware manufacturers.

Custom Servers and PC setups are available upon request including XP embedded w/ CF card support.
